Application scope:
HDM-Stainless steel, titanium alloy and other special metals can provide excellent results in drawing, deep drawing and stamping. It can be well adhered and covered on the mold, so it can reduce the production prcess and prolong the life of the mold.
Performance characteristics:
- The viscosity of drawing oil can be adjusted according to customers' requirements and actual conditions.
- Extremely high effective substance content, excellent extreme pressure lubrication performance, and strong oil film, which is helpful for metal sliding, preventing the workpiece from galling, avoiding the sintering of the mold, and effectively reducing scratches, scratches, sintering, welding and cracking.
- It has excellent adhesion and strong shear resistance.
Typical data:
|
Project/grade |
700 |
1600 |
6000 |
Test Method |
|---|---|---|---|---|
|
Kinematic viscosity (40℃), mm2/s |
700 |
1600 |
6000 |
GB/T265 ASTM D445 |
|
Viscosity Index |
90 |
90 |
90 |
GB/T1995 ASTM D2270 |
|
Flash point (opening),℃ |
260 |
280 |
300 |
GB/T3536 ASTM D92 |
|
Pour point,℃ |
-5 |
-2 |
0 |
GB/T3535 ASTM D97 |
|
Maximum seizure-free load Pb, N > |
1600 |
2000 |
2500 |
GB/T3142 ASTM D2783 |
|
Sintering load, Pd, N > |
7000 |
7500 |
7800 |
GB/T3142 ASTM D2783 |
Note: The above data are the measurement results of representative styles, and the product performance is subject to the actual measurement.
Caution:
According to the equipment oil regulations, select the oil with appropriate quality grade and viscosity grade; The storage container must be dedicated, and it must be waterproof, moisture-proof and prevent mechanical impurities from mixing during storage and transportation; Prevent foreign body pollution; To prevent mixing with other oils, different types of lubricating oil shall not be mixed.

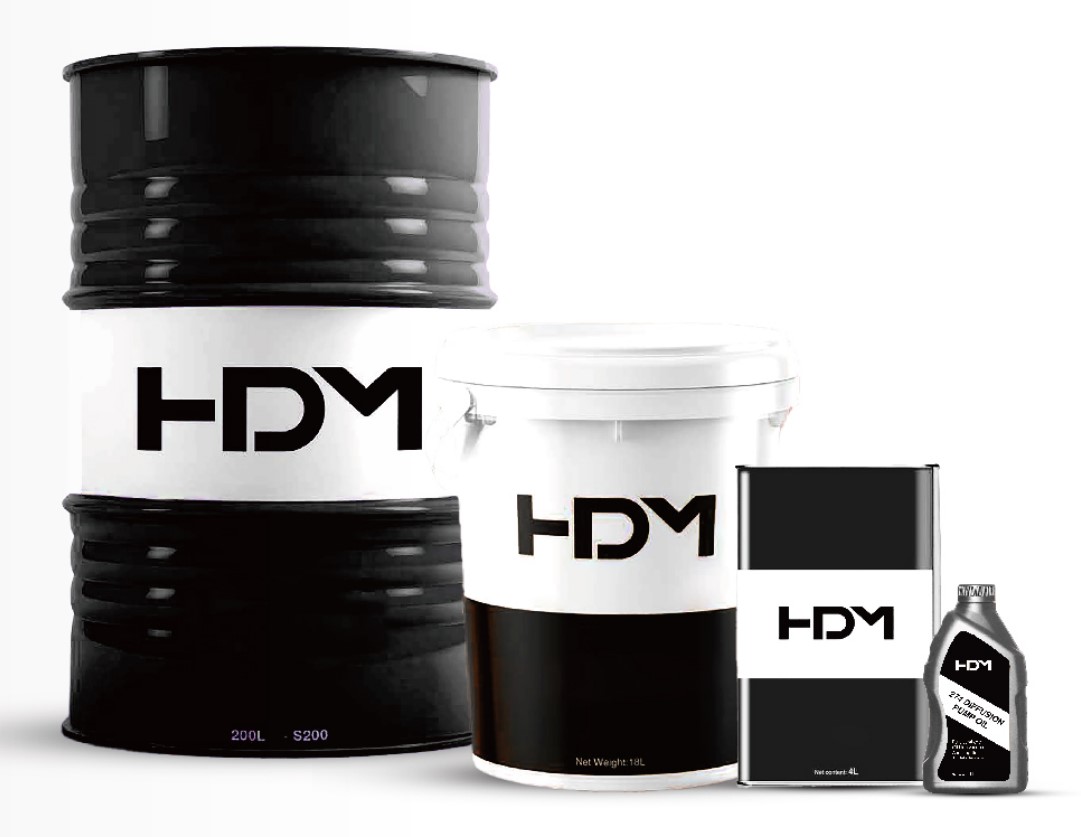

Packing: 200L iron drum and 18L plastic drum.
